Chamber Repair in Ellesmere Port

Clear Drain Services was called to a domestic property in Ellesmere Port after the homeowner experienced repeated drain blockages and slow-draining wastewater. Despite previous attempts to clear the blockage, the problem continued to return, indicating a more serious issue beneath the surface.

Using specialist drainage equipment, we carried out a full investigation and identified that part of the underground drainage system had collapsed. The damaged section had restricted the flow of wastewater, causing debris to build up within the pipework and resulting in recurring blockages.

Our Solution

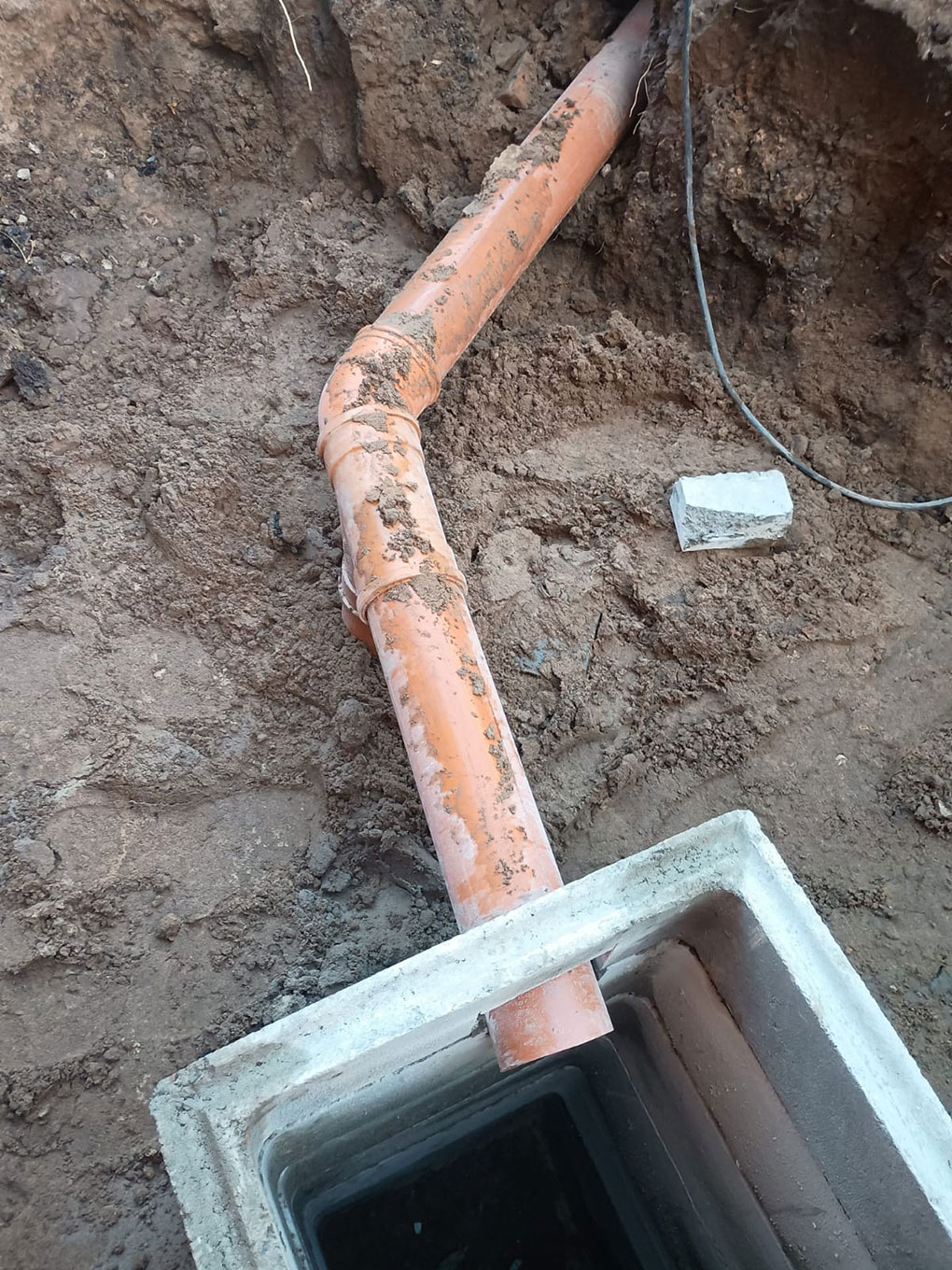

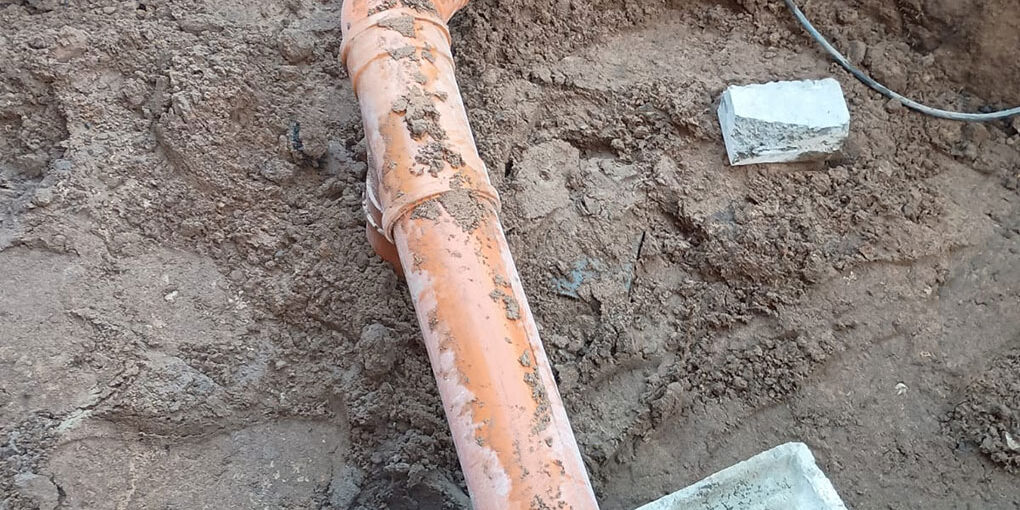

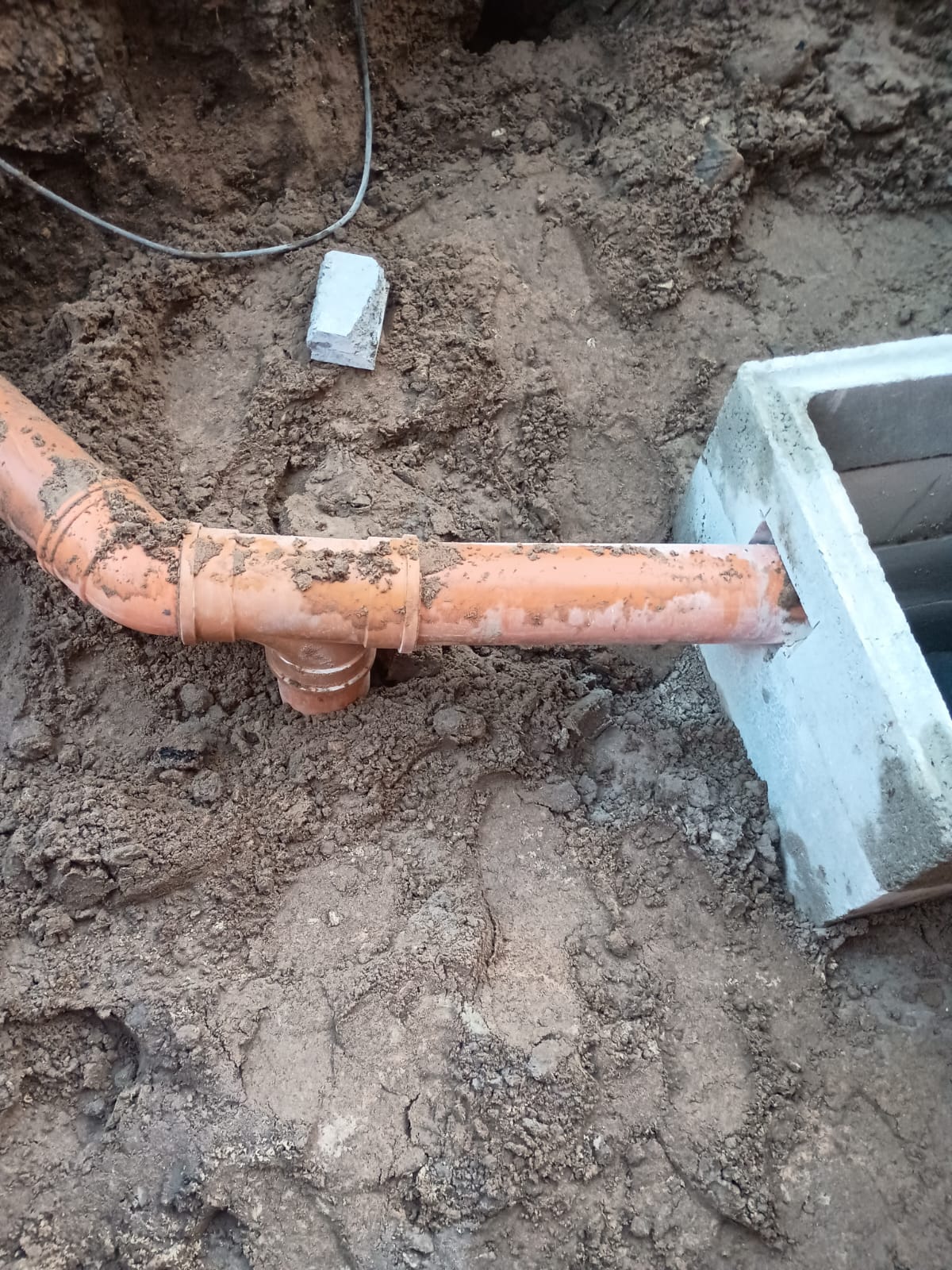

Our engineers carefully excavated the affected area to expose the collapsed drainage system and assess the extent of the damage. Once the failed section of pipework had been removed, we installed new underground drainage pipes together with a modern inspection chamber to restore full access to the drainage network.

The new chamber was positioned to provide permanent access for future maintenance, CCTV drain surveys and drain cleaning should it ever be required. Every connection was installed at the correct fall to ensure wastewater flowed efficiently through the system before the excavation was backfilled and the surrounding area reinstated.

By replacing both the damaged pipework and installing a new inspection chamber, we provided the homeowner with a durable, long-term repair rather than simply treating the symptoms of the blockage.

Why Do Drainage Chambers Need Replacing?

Inspection chambers are one of the most important components of any underground drainage system. They provide access to underground pipework, allowing drainage engineers to inspect, clean and repair the system without unnecessary excavation.

Older chambers, particularly those built from brick or ageing concrete, can deteriorate over time. Combined with collapsed drains, ground movement or tree root ingress, this can result in recurring drainage problems that simple drain jetting cannot permanently resolve.

Common causes include:

• Collapsed underground drains
• Ageing brick inspection chambers
• Ground movement and subsidence
• Heavy vehicle loading above the drainage system
• Tree root intrusion
• Poor historic repairs
• Repeated blockages causing structural damage

Typical warning signs include:

• Repeated drain blockages
• Slow-draining sinks, toilets or gullies
• Overflowing inspection chambers
• Foul smells around the property
• Sunken paving or soft ground
• Visible cracks in existing chambers

Why a New Inspection Chamber Was Installed

Rather than simply replacing the damaged section of drain, we installed a modern inspection chamber to improve future access to the drainage system.

A new chamber provides several long-term benefits:

• Easier access for CCTV drain surveys
• Faster drain cleaning and maintenance
• Improved access should future repairs ever be required
• Better long-term monitoring of the drainage system
• Reduced excavation costs for any future work

This proactive approach helps homeowners avoid unnecessary disruption and enables drainage issues to be diagnosed much more quickly in the future.

The Outcome

The collapsed section of drainage pipework was successfully excavated and replaced, restoring the free flow of wastewater through the property’s drainage system. At the same time, a new inspection chamber was installed to provide safe, permanent access to the underground pipework, ensuring future maintenance and inspections can be carried out quickly and efficiently without extensive excavation.

All new drainage connections were installed to the correct gradients and thoroughly tested before the excavation was backfilled and the site reinstated. The completed installation provides a strong, durable drainage system designed to withstand everyday use while significantly reducing the likelihood of recurring blockages caused by the previous structural failure.

By addressing the root cause of the problem rather than repeatedly clearing the blockage, the homeowner now benefits from a reliable, long-term drainage solution and the reassurance that the system can be easily inspected and maintained for years to come.
